Printable customize Marine Photoluminescent Imo Symbols Safety
Signs marine fire safety signs glow in the dark 2-12 hour
We produce IMO fire control symbols, IMO symbols&safety signs,
directional signs, way finding tapes sample application, etc.
Photoluminescent Sign/Glow In The Dark Sign/Luminescent Film
luminescent Exit Signage
Product Description
Specification
Product item |
Marine Series |
Glow in the dark time |
2-12 hours |
Mixing ratio |
Injection molding: 2-10%; Varnishing: 20-50% |
Excitation condition |
Sunlight, general lighting, ambient stray light |
Size |
1.24m*45.7m customized |
N/W |
26kgs/ctn(1roll in one carton) |
Gross Weight |
28kgs/ctn |
Useage |
emergency warning |
Properties |
Absorb light and glow in the dark |
Adhesive |
P.S.A glue |
Package |
1roll in one carton,25cartons on a pallet |
Color |
Yellow-green; blue-green, sky blue, multicolor |
Feature |
Non-toxic, Non radioactive, high initial luminance, long duration. |
Durability |
20 years indoor, 7 years outdoor. |
Application |
Emergency exit sign, fire facilities, IMO signs,and other guiding
signs. |
Samples |
Free samples,freight cost paid by customers |
Bulk lead time |
7-10 days more or less, based on your quantities |
Delivery |
FOB Shanghai, CNF, CIF, EXW |
Terms of payment |
T/T, L/C at sight, Western union |
Working temperature |
10 °C to 30°C |

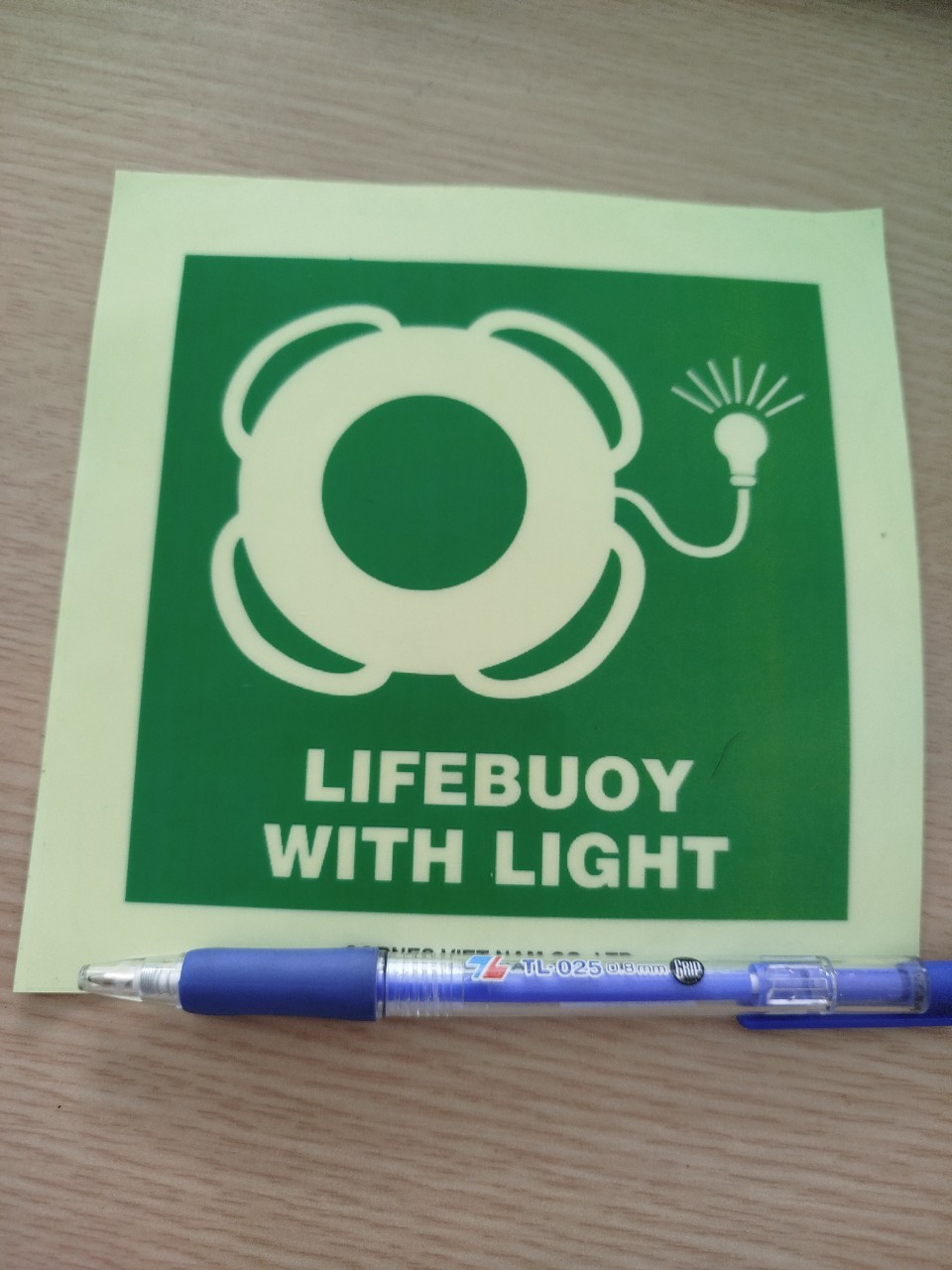

Product show
Product Description of Glow In Dark
Security products/glow in the dark directional floor sign/luminous
signs/road marking
Working way
After absorbing various visible lights, the photoluminescent sign
can continue emitting light in darkness (for hours), proving a
continuous steam of informative indication marks for evacuations in
darkness. These signs can be conveniently and widely used with the
advantage of delicate printing, beautiful appearance and excellent
luminance
Advantages
1) Non-toxic, non-radioactive, and friendly to environment.
2) High luminosity
3) Recharging-unlimited
4) No power, and maintenance free
5) Lead and phosphorous free
6) Long service life
7) Solvent resistant
8) Fire resistant
9) Good resistant of nick
10) High capability in heat/cold resistance
Typical Physical Properties
Property |
Values |
Thickness (film and adhesive) |
9-11 mils |
Service temperature range |
-30°F to 200°F
-34°C to 90°C |
Application temperature range (air and substrate) |
50°F to 100°F
10°C to 38°C |
Applied shrinkage |
0.031 inch
0.8 mm
|
Photoluminescent vinyl is designed for glowing in the dark. It's visible in the
dark.Normally it consists of Surface protected layer, Luminescence layer, Reflective layer,Glue layer and Liner layer. For printing photoluminescent vinyl,we match a pvc layer on the top of the
material, so it is compatible for Solvent & Eco-Solvent & UV ink.
The Arcyic photoluminescent film can also be used for screen printing.
Future
- Charges perfectly even under weak light;
- Luminous time can be up to 2 -12 hours;
- High quality imported film;
- Designed for commercial and critical signing applications;
- Good durability for three to ten year durability;
- Highly scratch, scuff, water and chemical resistant.;
- Available in assorted widths to meet your individual needs;
- Can be used to adhere to metal, wood, glass and most plastics for a
wider range of uses
| Glowing Duration | 2-4 hours | 4-6 hours | 6-8 hours | 8-10 hours | 10-12 hours |
| Brightness (mcd/m2) Initial | 6340.9 | 8274.8 | 10956 | 11025 | 11102 |
| Brightness (mcd/m2) 10s | 2604.2 | 3478.6 | 4661.3 | 5686 | 5790 |
| Brightness (mcd/m2) 10mins | 82.5 | 107.7 | 172.2 | 188.2 | 248.4 |
| Brightness (mcd/m2) 60mins | 10.7 | 13.9 | 21.4 | 24.1 | 31.2 |
Advantage:
1. Fast light absorption & long luminous time
It can be perfectly charged by weak light,glow in the dark time can
up to 2-12 hours
2. Strong environmental adaptalitity
3. High brightness,waterproof
4. Don't contin any radioactive elements
Performance
1.Be with certain flame retardancy.
2.Little retractility on surface of object, good performance of
heat-resisting and cold-resisting: be suitable in place with
temperature at -30~60.
Remark:
1. The aferglow brightness is measured under D65 standard light
source after being excited for 5min by 1000 LUX.
2.PVC-P Series: PVC material,no warping, no delamination, Non
flammability, easy for inkjet and silk-screen,DNV APPROVAL
IMOCERTIFICATE.
3.PET Series: PET material ,suitable for engraving, not easy for
printing.
4. AcrylicSeries:Acrylic material, weather resistance excellence,
easy for silk-screen, flammable, matt.
5.Thermal Transfer Series:PU material ,suitable for engraving, then
applied to fabric or liner through heat transfer by iron.
6.Special size or width and so on of photoluminescent film;we can
be processed based on customers' requirement
Packaging: Inner package: Pack with plastic film;
Outer package: pack with plywood pallet or Plywood box.
Reserve: Should be stored in ventilated, dry, shadow and cool storehouse.
Application:
Signs made by photoluminescent film can be applied in the following
conditions with convenient operation,emergency running man left /right photoluminescent fire exit sign :
1. Location Guide: They can be applied on the surface of following
objects: switches of electric appliances, remote control , wall
switches, plugs, receptacles, locks, hand torches, door handles,
handrails, fire extinguishers, fire alarms, lifesaving devices,
etc.
2. Safety Markings: They can be applied to the following places to
give safety indication and warning: emergency exits and passageway,
subway stations, railway stations, airports, civil air defense
projects, KARAOKE halls, cinemas, supermarkets, hospitals,
terminal, etc
3.Stick on board,wall,stair or room to make glow in the dark
wall/room
4.Widely used to make Road and exit sign
Widely used for Safety signs and warning symbols, like: Emergency
evacuation signs and maps, glowing signs for the pathway, signs for
the subway station, underground passage signs, dance bars, cinemas,
supermarkets, stores, hospitals, railway stations, airports, docks,
etc.
It is also can be used on residential house as well, marking on the
steps, handrails, stair landings, egress path obstacles and exit
doors of enclosed stairwells.
Roadway Signs, Prohibition Marking, Warning Making, Guide Signs,
School Signs, Highway Signs, Traffic Facilities Signs,Construction
Marking, Reflective Tape for Truck/Trailer/Emergency vehicle etc.
